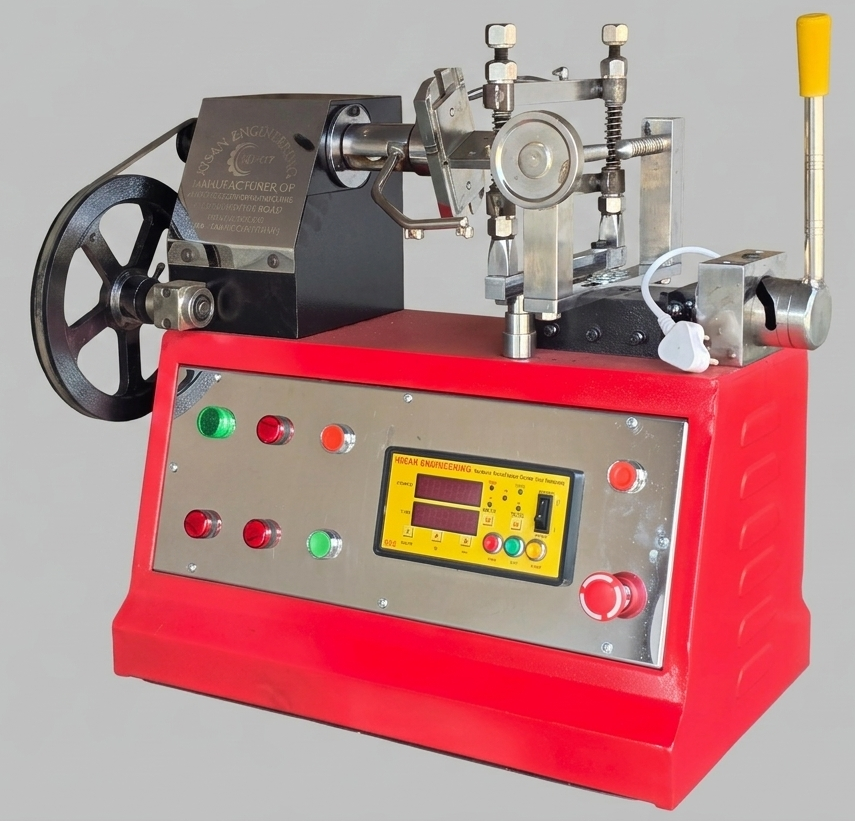

Semi Automatic ceiling fan winding machine KIJ 117 by Kisan Engineering offers both manual and motorized operation, ensuring efficiency and convenience. This model includes a Master Die, back plate, panel plate, box plate, and pure steel key. With a 7-year warranty on the digital counter meter and a 15-year warranty on the Master Die, there’s no need to change dies frequently for 12, 14, 16, and 18 models. The pure copper motor, designed and manufactured by Kisan Engineering, ensures durability. Nationwide delivery is available, with full company support. Also available through authorized dealers.
| Model | KIJ-117 Hand Model |
|---|---|
| Guarantee | 5 to 7 Years |
| Brand | Kisan Engineering |
| Winding Type | Aluminium & Copper |
| System | Semi Automatic |
| Die | Master Die, High Speed, Multi die (Optional) |
| Plates | Back Plate, Panel Plate, Box Plate, Main Plate, All Stainless Steel |
| Meter | LED, 3 Digit, 4 Digit, 6 Digit |
| Wire Size | 27 to 38 Gauge |
| Volt | 230V |
| Motor | 1/4 |
| Speed | 1440 RPM |
| Wire Direction | Clock, Anti-Clock |
| Dimensions | LxBxH = 33.5 x 15.50 x 28.5 inch |
| Brake | Optional |
| Stator Length | 190mm Maximum |
