Semi Automatic Ceiling Fan Winding Machine – KIJ 123

Semi Automatic Ceiling Fan Winding Machine – KIJ 123 is a Best Low Price Budget Friendly Device. This is our Top Selling Product.

• Price is Given with Courier + GST
• This model comes with electric power brake system
• It has the facility of fixed die, due to which it takes only 10 seconds to install the die.
• In this model, both die and handle are provided of steel
• It has a spring system due to which there is no need spanner & Keys.
• In this model, you will get both master and multi options. Customers can choose any die as per their requirement.
• It comes with a 5+5 digit meter, which has a warranty of 7 years.
• The warranty of the die is 15 years. (for peeling of polish and rusting)
• You can easily wind 50-60 fans with this machine in a day.
• You can set the sliding of the machine according to the width of the fan.
• You can wind both aluminum and copper
• Work – Semi Automatic (Operator needs only Set of Stator & Control Turns)
• Plates – Back Plate, Panel Plate, Box Plate, Main Plate, All Stainless Steel
• Wire – 18 to 36 SWG
• Volt – 240V
• Motor – ¼ HP (186.5 Watts) Inverter Compatible, 1 Year Warranty
• Motor Speed ​​– 1440 RPM
• Wire Direction – Clock, Anti-Clock

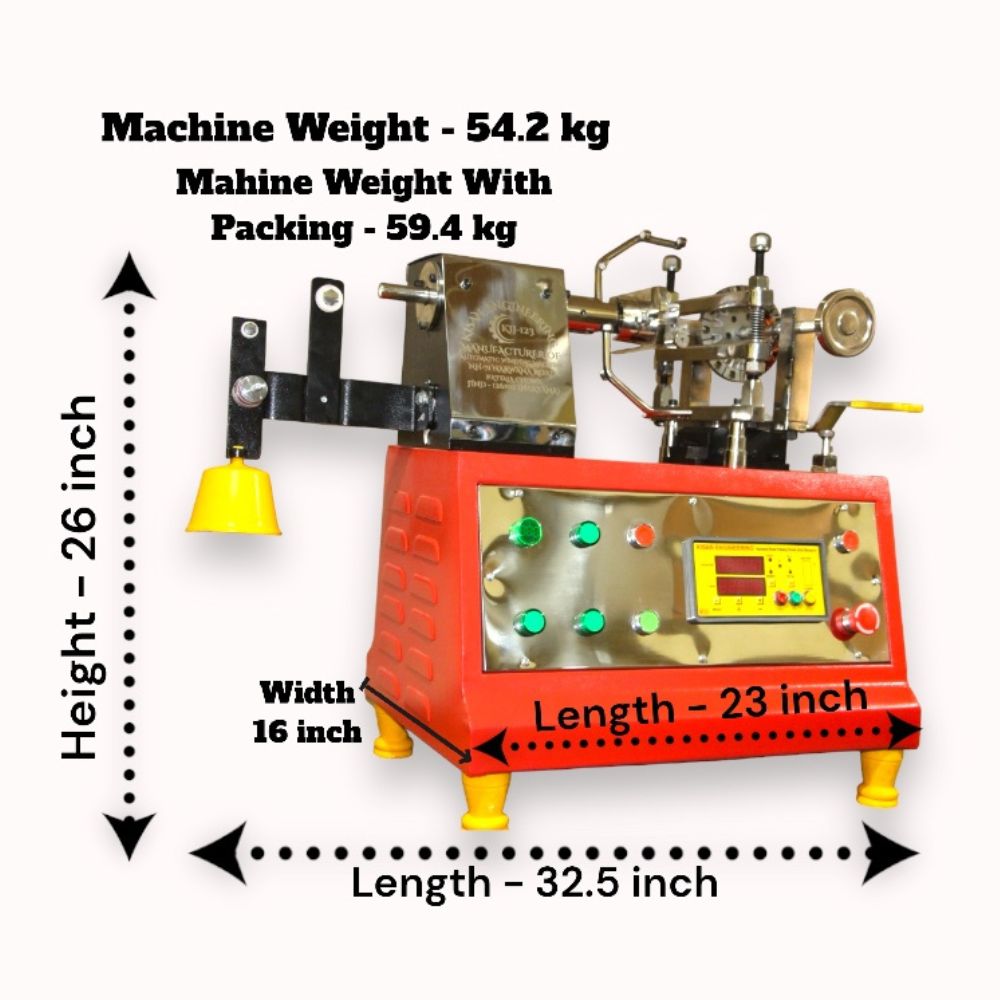

• Dimensions – (Length – 32.5 inch, Width – 16 Inch, Height – 26 Inch) ß Wrong
• Stator Length – 190 mm Maximum
• Packing – Styrofoam + Carton Box
• Weight – 54.2 Kg (With Packing – 59.4 Kg)
• This machine is the best model with new technology. Kisan Engineering provides you the facility of home delivery.
• The company is fully responsible for any damage during transportation. If any part turns out to be faulty, the company replaces it for free.
• If you face any problem in operating the machine, you can call the company’s helpline number.
• All our models are noise and vibration free.
• Kisan Engineering is the only company in India that manufactures all the parts of the machine itself. You can also come to the company and collect the machine.
